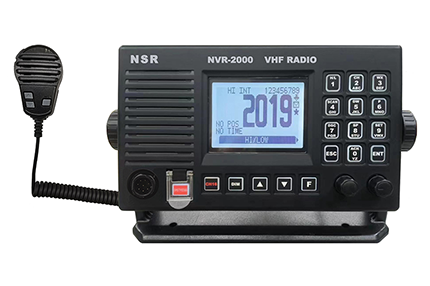

NVR-2000 VHF RADIO (CLASS D)

Published on: 2023-09-27


[FEATURES]

- High performance VHF device, capable of voice communication and DSC (digital selective calling) facilities as well.

- Meet the regulations of ITU Regulation Appendix 18, ITU-R M.493-16, IMO MSC.1/Circ.1460/Rev.5, IEC 61097-7, IEC 61097-3.

- 4-digit channels available.

- Dual watch function.

- Built-in GNSS receiver.

- DSC class D.

- CCS type approval.






[SPECIFICATIONS]

TX Frequency:

156.025 ~ 157.425 MHz

RX Frequency:

156.050 ~ 163.275 MHz

Working Channel:

Full ITU channels

DSC Watch CH:

CH70

TX Power:

25 W (high) / 1 W (low)

RX Sensitivity:

≤2μV (SINAD=20 dB)

Interface:


GNSS Input:

RS422，4800bps

Power Supply:

DC 13.8V (range 12V ~15V), max 5.5 A

Size:

137 (H)×233 (W)×91 (D) mm

Weight:

1.3 kg

Operating Temperature:

-15° ~ 55°C (Transceiver, Mic)

-40° ~ 55°C (Antenna)

IP Grade:

IP22: Transceiver, Mic

IP66: Antenna




NSR NVR-2000 VHF RADIO BROCHURE.pdf
